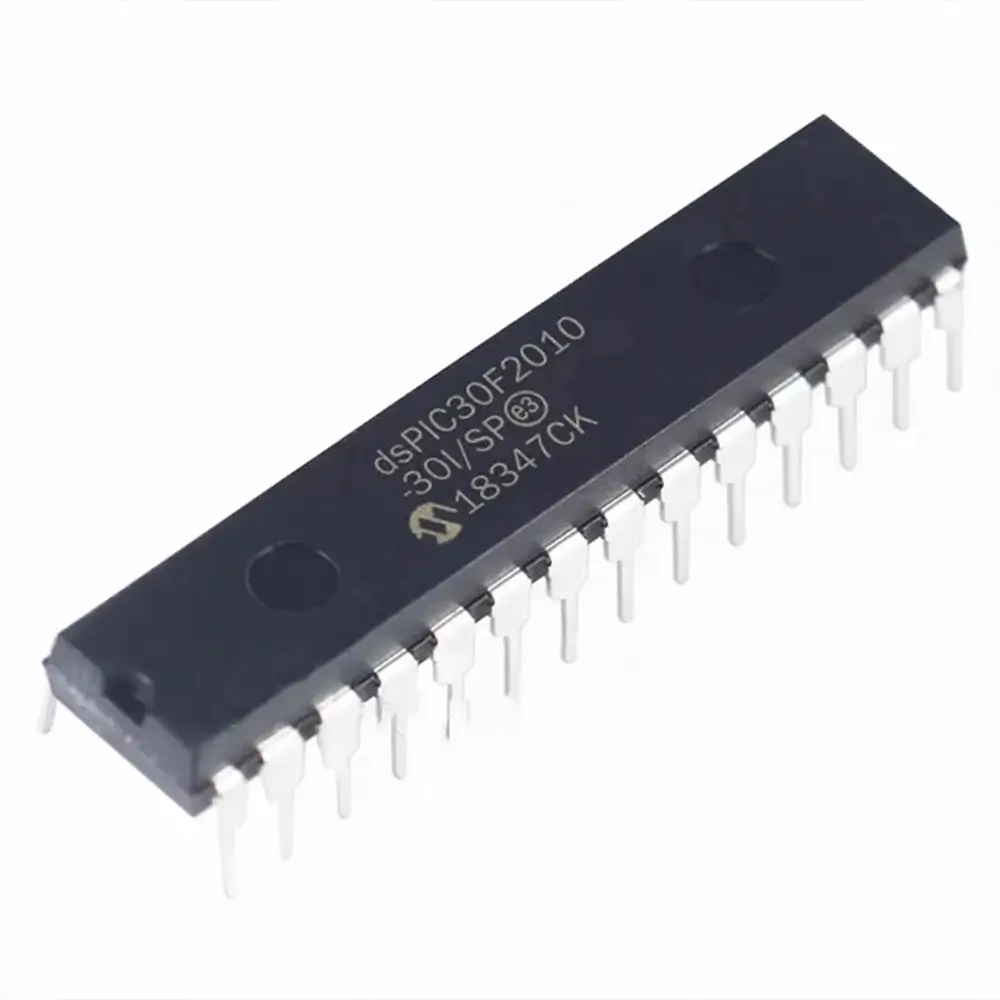

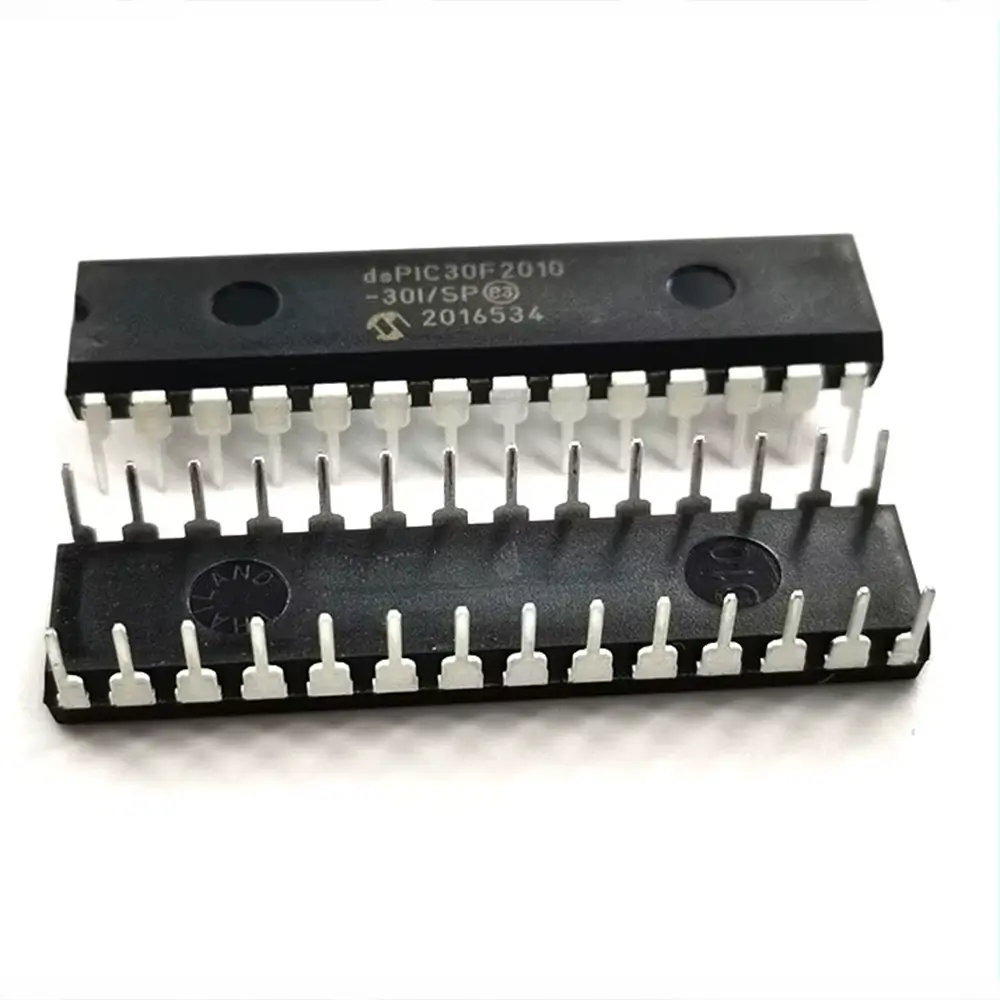

The dsPIC30F2010 is a high-performance, 16-bit Digital Signal Controller (DSC) that seamlessly blends the control advantages of a traditional microcontroller with the intense computational power of a Digital Signal Processor (DSP). Housed in a convenient, breadboard-friendly 28-pin DIP package, this chip is explicitly engineered for precision embedded applications that require high-speed mathematical throughput and real-time execution. Featuring an advanced power control PWM module and a lightning-fast Analog-to-Digital Converter, the dsPIC30F2010 is a favorite among hardware designers for managing demanding, high-frequency power electronics. Whether you are developing synchronous MPPT buck regulators, pure sine wave inverters, or advanced brushless DC (BLDC) motor vector control loops, this controller delivers the deterministic timing and mathematical muscle needed to execute complex calculations smoothly.

Typical Applications:High-Frequency Switching Mode Power Supplies (SMPS)Solar MPPT Charge Controllers & Grid-Tie InvertersDigital AC/DC Rectifiers & PFC CircuitsBrushless DC (BLDC) & Permanent Magnet Synchronous Motor (PMSM) DriversHigh-Speed Sensor Array Signal ProcessingProduct FeaturesDual-Core Functionality: Combines a powerful 16-bit MCU architecture with a dedicated hardware DSP engine, featuring two 40-bit accumulators for single-cycle math execution.High-Speed Execution: Operates at up to 30 MIPS (Million Instructions Per Second) at 5V, ensuring deterministic, real-time control loop processing.Robust Memory Array: Equipped with 12 KB of Flash program memory, 512 Bytes of data SRAM, and 1024 Bytes of high-endurance non-volatile EEPROM.Advanced Motor Control PWM: Features a specialized 6-channel Motor Control PWM module with programmable dead-time insertion and complementary output modes.Ultra-Fast 10-bit ADC: Includes a 6-channel high-speed Analog-to-Digital Converter
