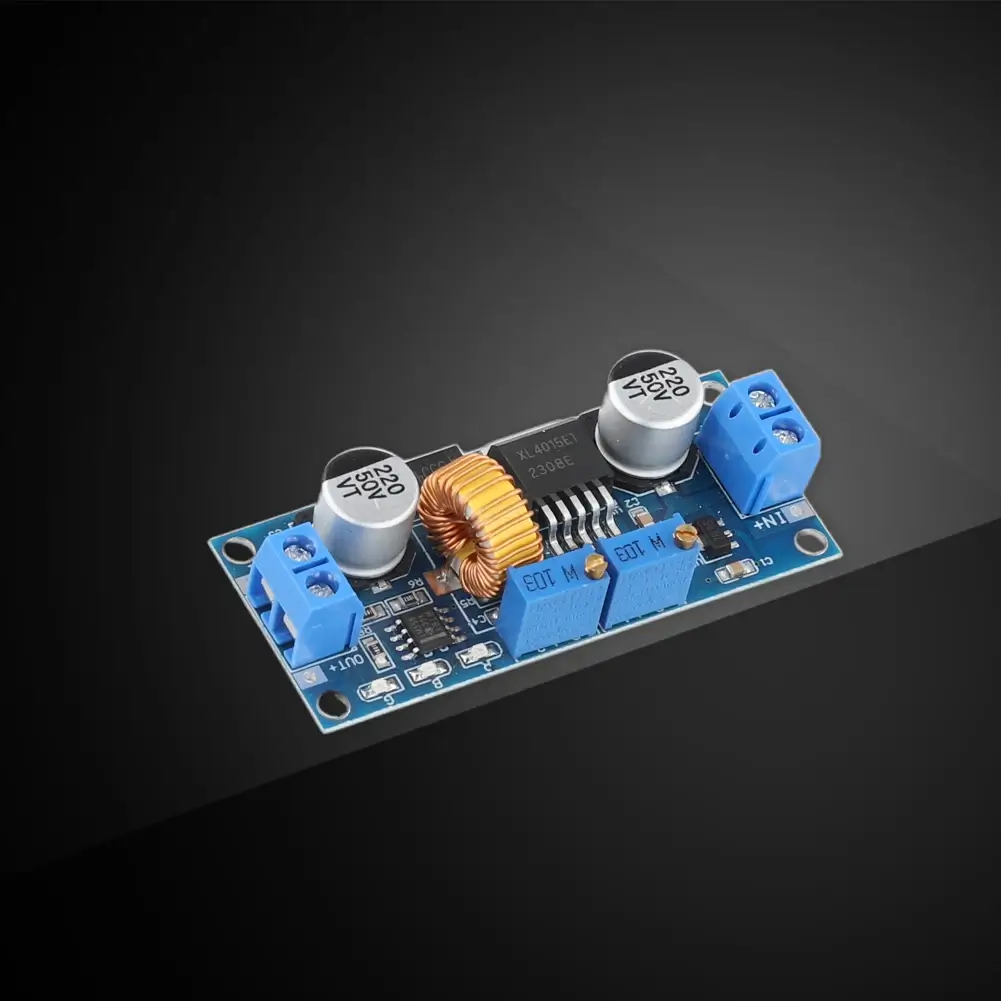

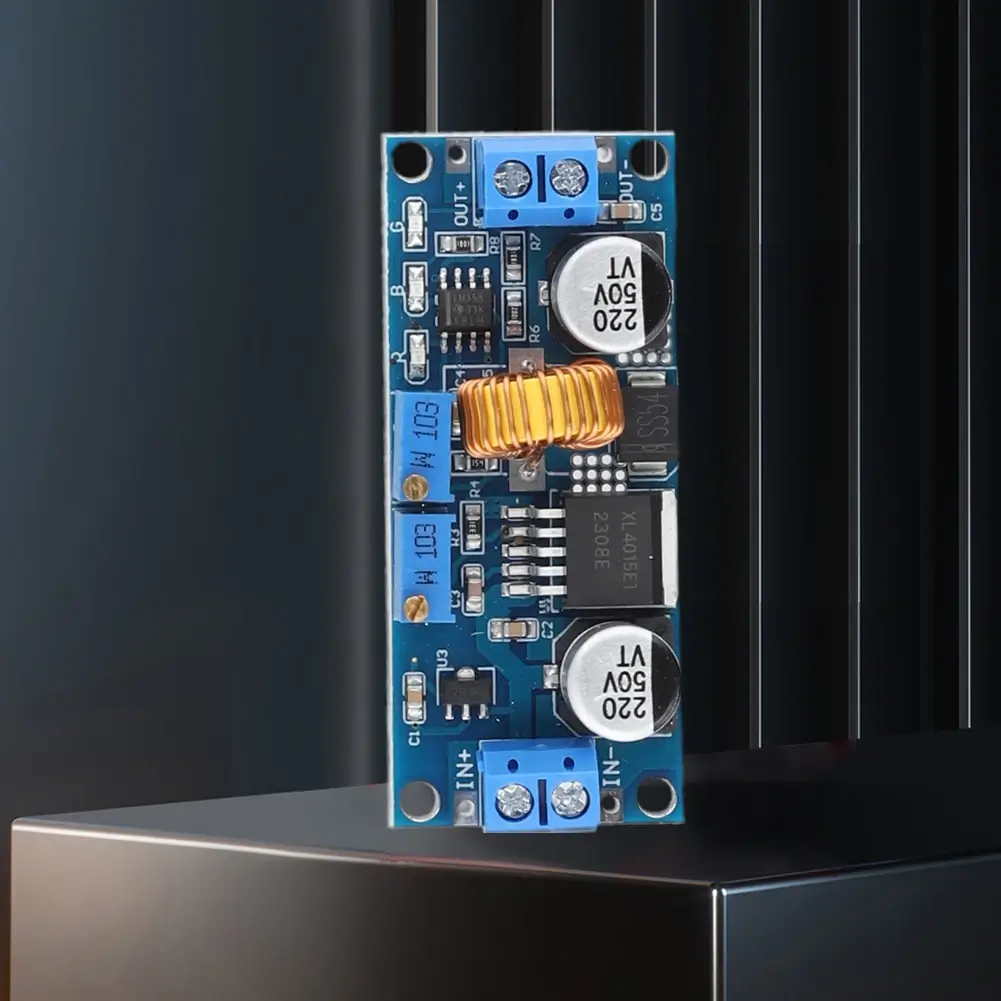

5A high power, high efficiency and low ripple with power indicator Module Properties: non-isolated buck module (BUCK) Input voltage: 4-38V (input please try not to exceed 38V) Output voltage: 1.25-36V continuously adjustable Output Current: 0-5A Output Power: 75W Operating temperature: -40 to +85 degrees Operating frequency: 180KHz Conversion efficiency: up to 96% Load regulation: S (I) ≤0.8% (input 24V, output 12V, load varies from 1 ~ 4.5A measured) Voltage Regulation: S (u) ≤0.8%

non-isolated constant current and voltage module Rectification: non-synchronous rectification Input voltage: 8V-34V Output voltage: 1.25V-32V Output current: adjustable maximum 5A Conversion efficiency: 95% (the highest) Switching frequency: 180KHz Output ripple: 50mV (max) 20M bandwidth Load Regulation: ± 0.5% Voltage Regulation: ± 2.5% Operating Temperature: -40 °c to +85 °c
