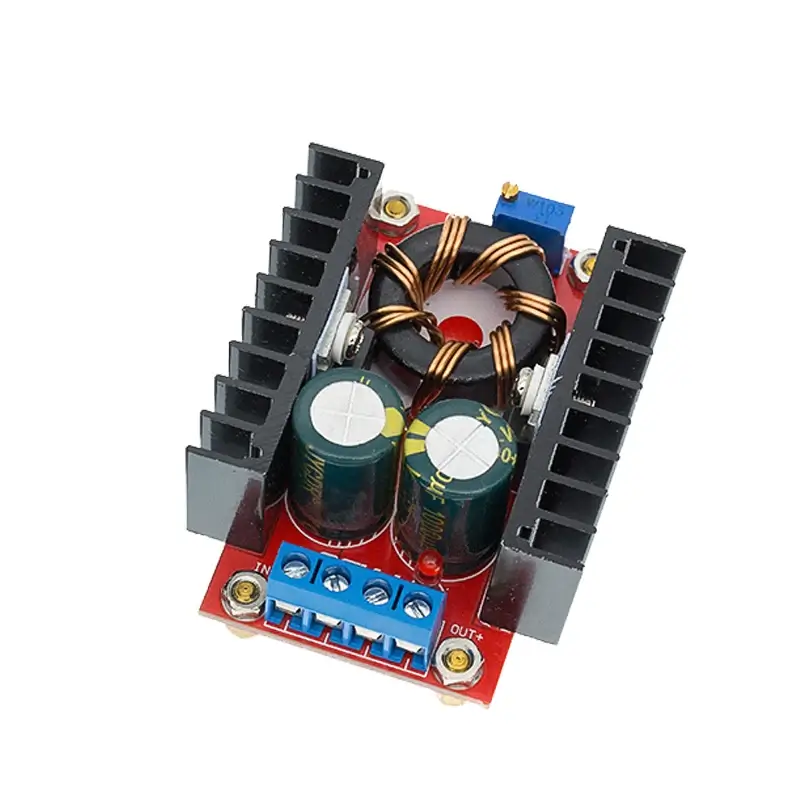

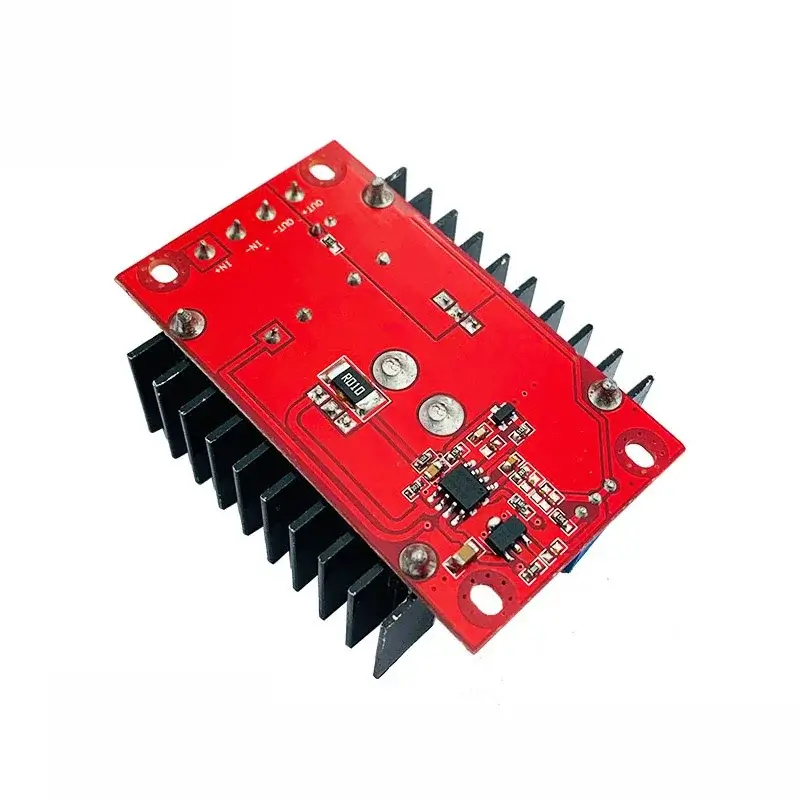

Module Properties: non-isolated step-up module (BOOST) 65 * 56.5 * 23 (length * width * high) (mm) Input voltage :10-32V Output voltage: 12-35V (adjustable) Output Current: 6A (MAX) Input Current: 10A (MAX) (Please enhance heat dissipation if more than 10A) Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX) Easy to drive 65W 90W dual-core notebook. Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45°c Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A) Output Ripple: 2% (MAX) 20M-bandwidth Operating Temperature: Industrial (-40°c to +85°c) (ambient temperature exceeds 40°c, lower power use, or to enhance heat dissipation) Full load temperature rise: 45°c No-load current: 25mA typical Voltage regulation: ± 0.5% Dynamic response speed: 5% 200uS Short circuit protection: None (Please Install fuses and protection circuits at Input port.) Input Reverse Polarity Protection: None (Please Series diode at the input port.)Some Applications: 1. DIY an output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable freely), However, the output voltage can not be less than the input voltage. 2. Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need.

100% Brand new and high quality dc-dc Boost Converter 10-32v to 12-35v Step Up Charger Power Module 150W Adjustable Static Power DC Boost Voltage Regulator Converter Module 10-32V to 12-35V Step Up 150W 6A Input voltage: DC 10-32 V Output Voltage: DC 12-35 V(Adjustable) The Output Current: 6 a (MAX) Input current: 10A (MAX) Output Power: natural cooling 100W (MAX), strengthening cooling 150W (MAX) real Power. Conversion efficiency: 94% (when Input 19V 2.5a Output 16V, Reference) Output ripple: 2% (MAX) Working Temperature: industrial (40 ° c to + 85 ° c), environmental Temperature, wining 40 degrees, both please reduce power to use, or to enhance cooling). Full-load temperature: 45 degrees No-load current: 25mA typical Voltage regulation: 0.5% Load regulation: 0.5% Dynamic response speed: 200uS 5%
