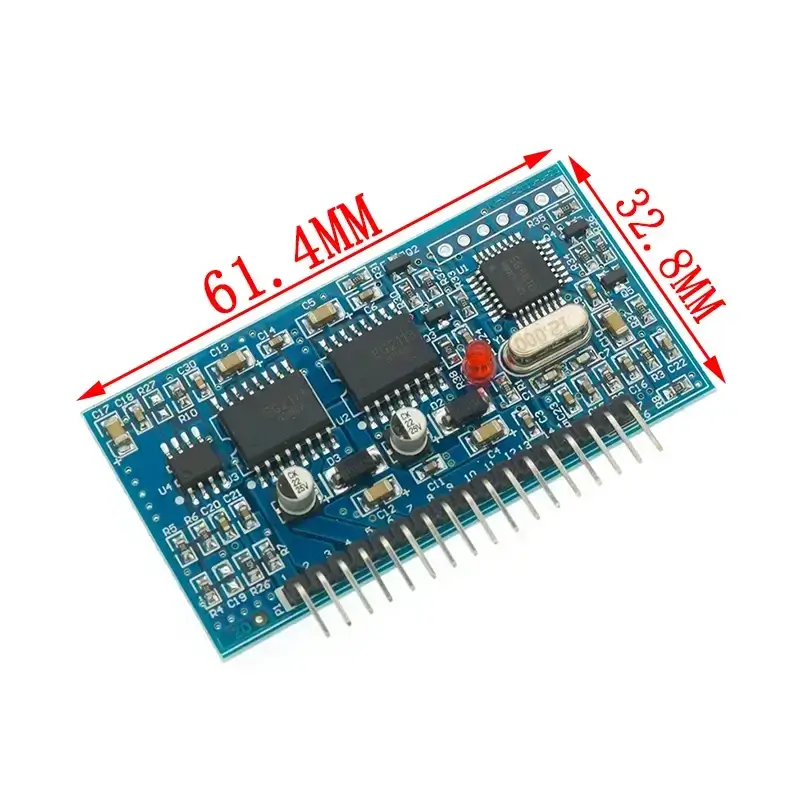

EGS002 is a driver board specific for single phase sinusoid inverter. It uses ASIC EG8010 as control chip and IR2110S as driver chip. The driver board integrates functions of voltage, current and temperature protection, LED warning indication and fan control.Jumper configures 50/60Hz AC output, soft start mode and dead time. EGS002 is an improved version of EGS001 that is compatible of EGS001’s original interfaces. EGS002 also integrates cross-conduction prevention logic to enhance its ability of anti-interference, and LCD display interface for users’ convenience to use chip’s built-in display function. EG8010 is a digital pure sine wave inverter ASIC (Application Specific Integrated Circuit) with complete function of built-in dead time control. It applies to DC-DC-AC two stage power converter system or DC-AC single stage low power frequency transformer system for boosting. EG8010 can achieve 50/60Hz pure sine wave with high accuracy, low harmonic and distortion by external 12MHz crystal oscillator. EG8010 is a CMOS IC that integrates SPWM sinusoid generator, dead time control circuit, range divider，soft start circuit, circuit protection, RS232 serial communication, 12832 serial LCD unit, and etc.

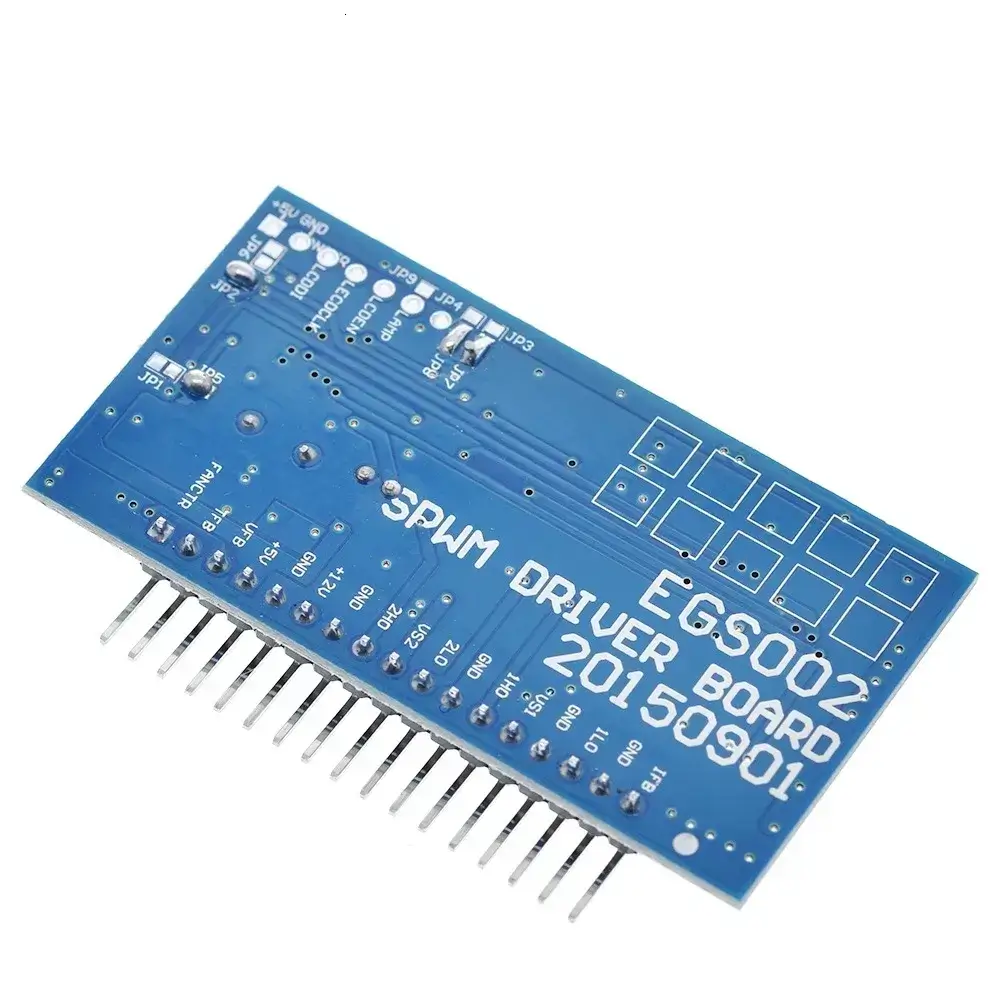

EGS002 Driver Board The EGS002 is a high-performance driver board specifically designed for single-phase sinusoidal inverters. Built around the powerful EG8010 ASIC and IR2110S driver, it delivers precise control and robust protection.   Key Features: Pure Sine Wave Output: Generates clean, low-distortion AC waveforms.   Advanced Protection: Incorporates voltage, current, and temperature safeguards.   Flexible Configuration: Customizable 50/60Hz output, soft start, and dead time settings. LCD Display: Provides real-time monitoring and control (optional).   Improved Design: Enhanced anti-interference with cross-conduction prevention.   Compatibility: Backward compatible with EGS001 interfaces.   Ideal for DIY inverter projects, renewable energy systems, and other power conversion applications.
