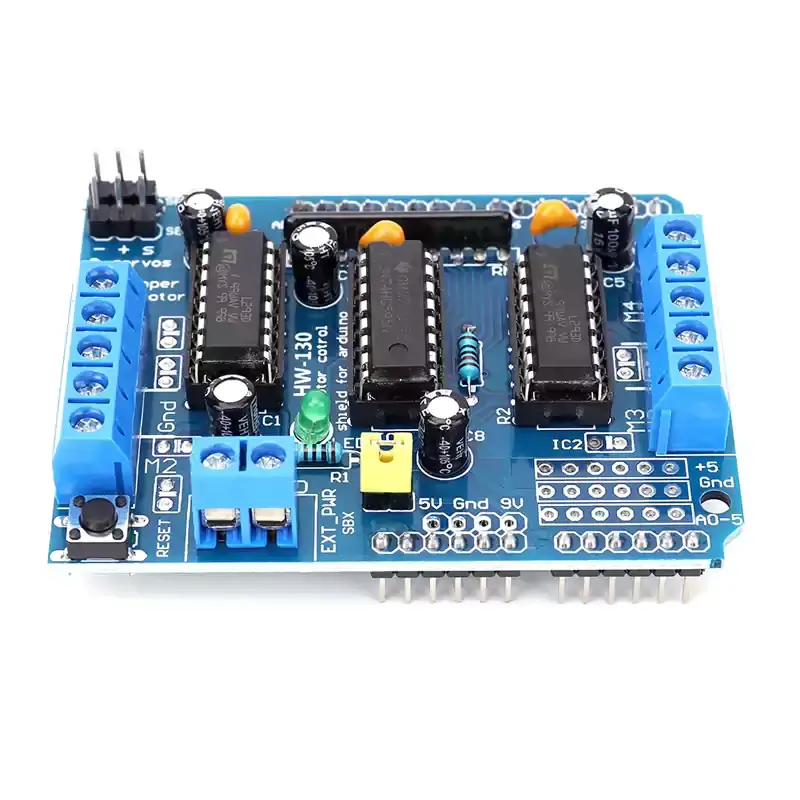

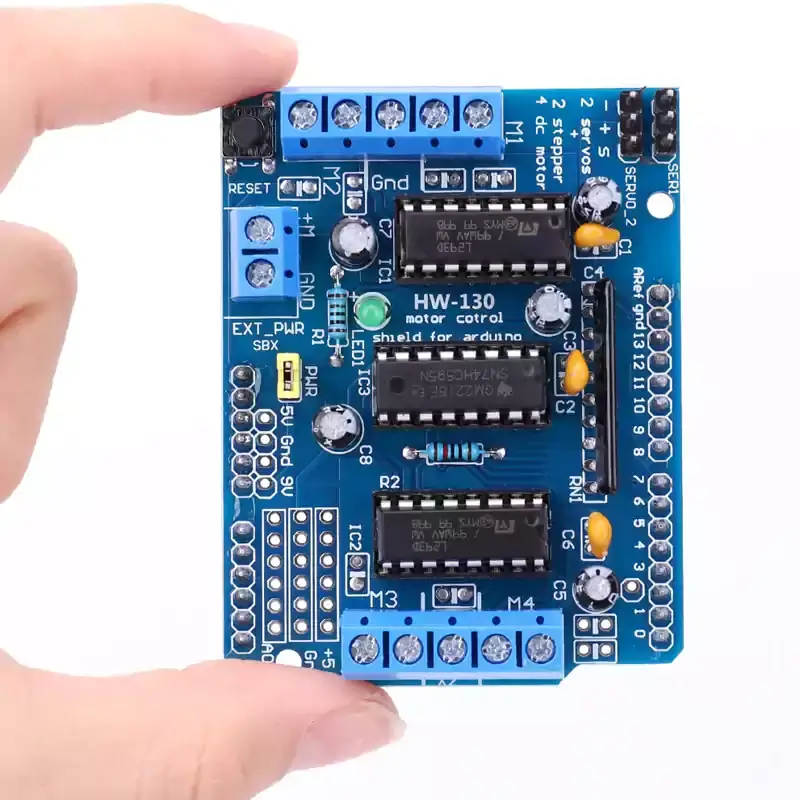

L293D 4 Channels Motor Driver Shield is equipped with the highly regarded L293D motor driver IC, known for its reliable performance and robustness. With its four independent channels, this shield allows you to effortlessly control up to 4 DC motors and two 4-wire steppers and two 5v servos simultaneously, making it an excellent choice for projects that require multiple motor control, such as robotics, automation systems, RC vehicles, and more. Seamlessly integrating with your Arduino Uno board, this shield provides a hassle-free experience. The shield connects effortlessly to the Arduino Uno, eliminating the need for complex wiring or soldering. Simply plug it onto your Arduino Uno, and you’re ready to delve into the world of motor control. The shield contains two L293D motor drivers and one 74HC595 shift register. The shift register expands 3 pins of the Arduino Uno to 8 pins to control the direction of the motor drivers. The output enables the L293D is directly connected to PWM outputs of the Arduino.

Voltage: Dc4.5v-36v Peak Current: 1.2A H Bridge: 4 Size: 70*55mm Drive: 4 DC Motors or 2 Stepper Motors or 2 Servos Maximum Current / Channel: 600ma Note: Power for the motors can be supplied from the Arduino boards DC Jack (normally 9V) or from the 2-pin EXT-PWR terminal block. If you are supplying power from the EXT_PWR terminal block you should remove the PWR jumper or you could damage the shield and the Arduino board.
