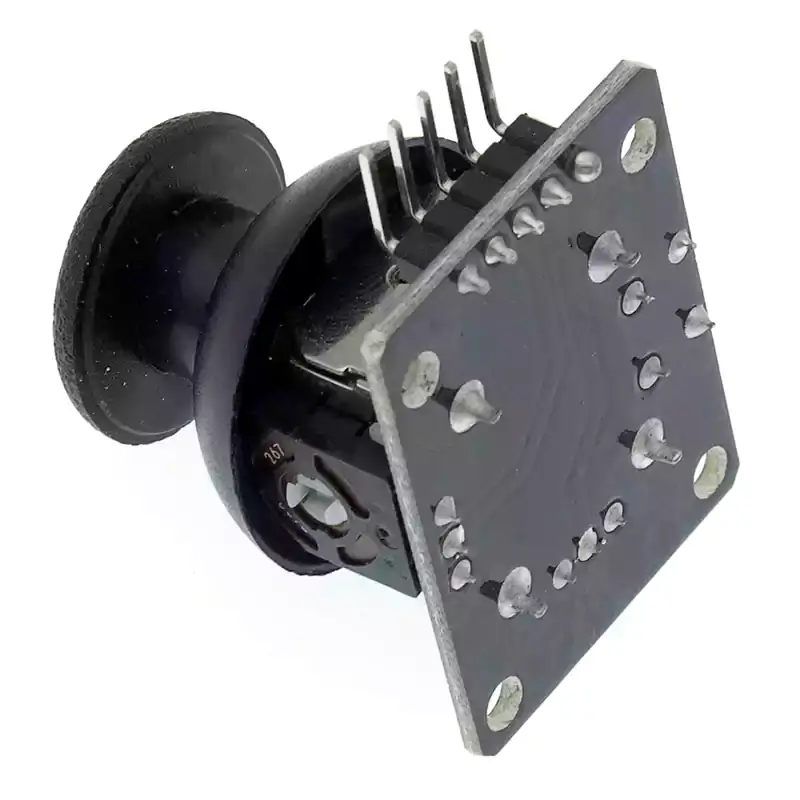

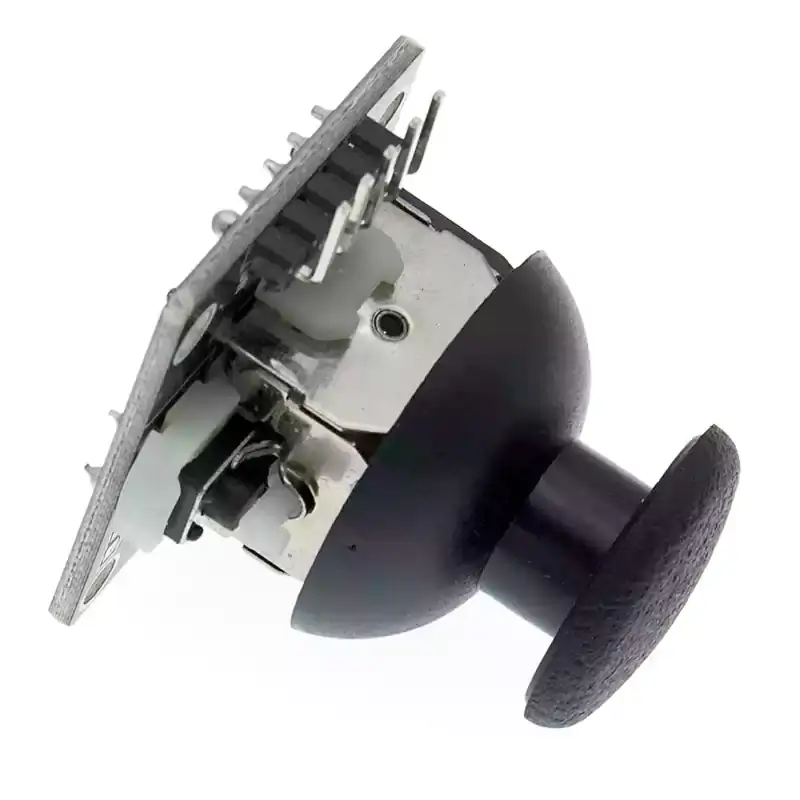

Joystick Sensor Module have many useful applications in Electronics. When you hear the word “Joystick” first thing you think of is Game controllers. These type of module are mostly used in Arduino based DIY projects and Robot Control. As we know, the module gives analog output so it can be used for feeding the analog input based on direction or movement. It can also be connected to a movable camera to control its movement.

Joystick Sensor Module Pin Configuration Pin No. Pin Name Description 1 Gnd Ground terminal of Module 2 5v Positive supply terminal of Module 3 VRx Voltage Proportional to X axis 4 VRy Voltage Proportional to Y axis 5 SW Switch
