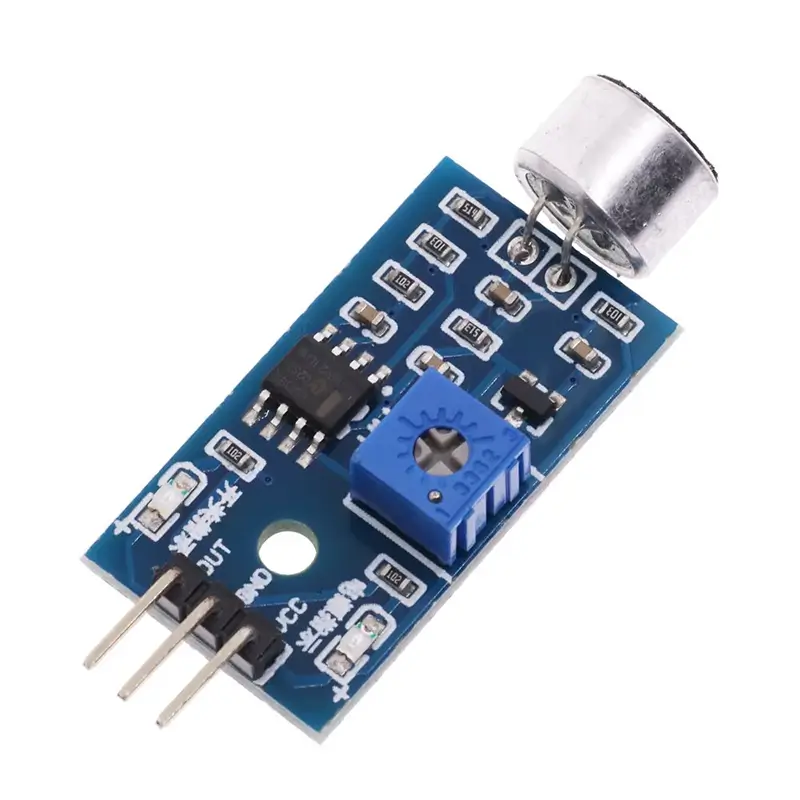

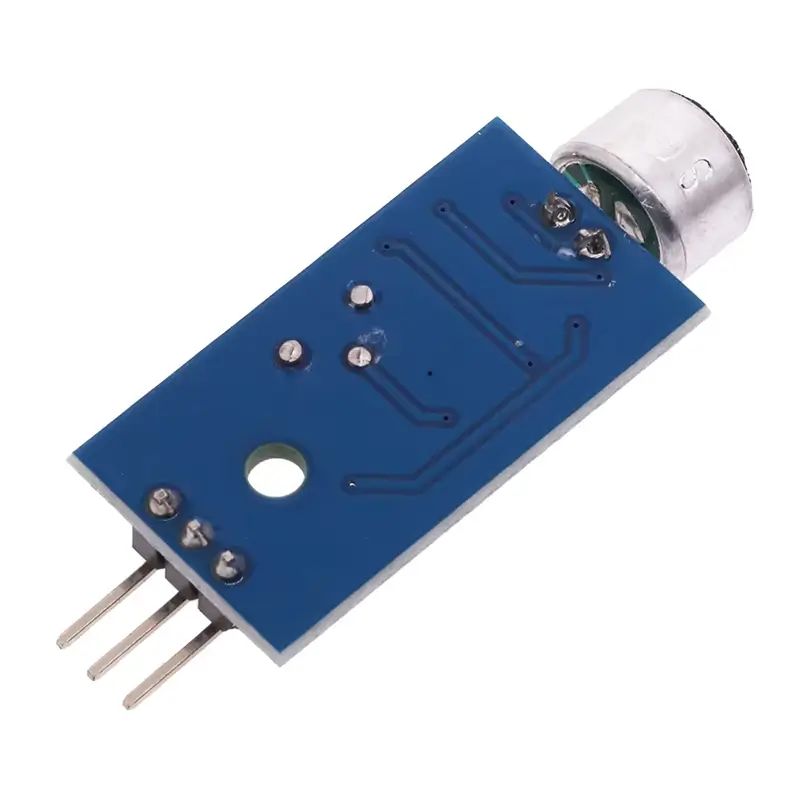

The Sound Sensor Module is designed to detect sound levels and convert them into an electrical signal. It is commonly used in various applications such as noise detection, sound-activated systems, and audio level monitoring. This module typically includes a microphone and an amplifier circuit, providing analog or digital output based on sound intensity.

Sensitive microphone for sound detection Adjustable sensitivity Analog or digital output Compact and easy to interface Low power consumption Robust design for various applications Technical Specifications: Detection Range: 50dB to 120dB Output Signal: Analog (voltage) or Digital (high/low threshold) Operating Voltage: 3.3V to 5V DC Sensitivity Adjustment: Potentiometer for adjusting sensitivity Response Time: ≤ 10ms Frequency Range: 20Hz to 20kHz Dimensions: 30mm x 20mm x 10mm (approximate) Weight: 10g Mounting Type: PCB mount with through-hole pins or surface mount
